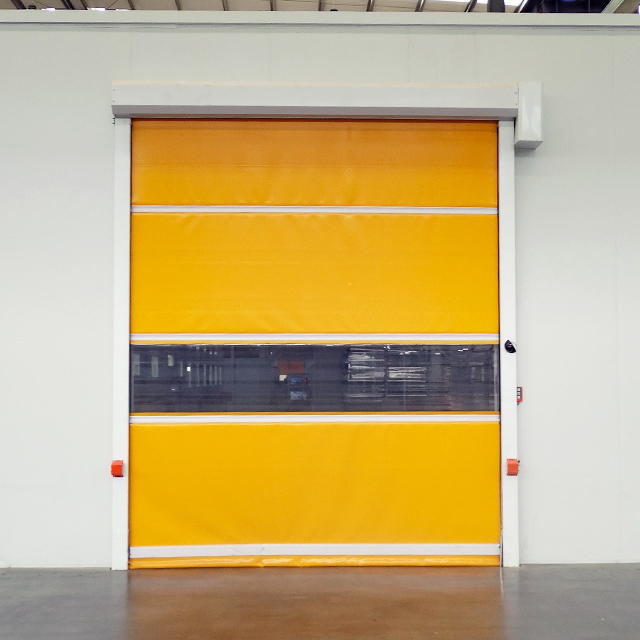

PVC High Speed Roll Up Door

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Enhance your commercial or industrial environment with YUOU's PVC high speed doors (also known as PVC fast doors or rapid doors). Designed for speed and dust proof, these doors are ideal for industrial workshops where people and vehicles move frequently. They ensure a stable internal environment while optimizing traffic efficiency. As China's leading industrial door manufacturer, we offer lower price products without compromising on quality.
  • Starting from US $910/set

Color:
Hood cover box material :
Transparent window:
Pedestrian-vehicle segregation radar:
Safety Airbag:
Availability:

Technical Data

Max dimension
6000mm wide*6000mm high
Max opening Speed
2.5m/s
Max closing speed
1.0m/s
Wind resistance
Beaufort scale 10 (25m/s)
Power supply
1-phase 220±10%V
50/60HZ
Protection level of electric
IP55

Product Details

Structure diagram


CAD drawings clearly show the structure of the PVC rapid roller shutter door. Including door curtain, track, scroll, motor, control box and so on. You can choose to add windows, police lights and other non-standard configurations. We will draw exclusive CAD drawings for each customer. Let you have a clear understanding of your favorite PVC fast rolling door.

PVC Fabric

The PVC material used in high speed doors is not only environmentally friendly but also safe and sturdy. Select from a wide array of colors to personalize your doors according to your preferences.

Standard thickness:1.0mm(950g/sqm).
Other thickness available:1.2mm-1.5mm;

Flame resistant material.

Frame and Rails

The PVC high speed door features two sturdy guide rails, a top cover box, and a motor cover, all available in galvanized steel or stainless steel.

Thickness:1.5mm guide rail;1.0mm cover box.

Standard material:Galvanized steel,surface is painted.

Optional material:304 stainless steel or aluminum alloy.

Motor and controller

The PVC high speed door utilizes a special motor designed specifically for high speed operations and is crafted with the industry's top manufacturing technology.

Featuring Italy's advanced servo technology motor and controller, the system is equipped with an English interface for ease of use.

Additionally, it employs an absolute encoder paired with an inbuilt incremental encoder. This double encoder system ensures a low failure rate, enhancing the door's reliability and performance.

Photocell sensor

When there is a human or vehicle under the PVC fast door, it will stop closing and automatically reverse.

This safety feature is designed to avoid accidental collisions, ensuring the protection of both people and vehicles.

By immediately detecting and responding to obstructions, the PVC quick roll up door helps maintain a safe and efficient environment.

Safety bottom edge

When there is a human or vehicle under the PVC fast roller shutter door, it will stop closing and automatically reverse.

This safety feature is designed to avoid accidental collisions, ensuring the protection of both people and vehicles.

By immediately detecting and responding to obstructions, the PVC high speed roll up door helps maintain a safe and efficient environment.

Alarm light and emergency buttons

Alarm lights and emergency buttons are critical safety features for high-speed doors. The alarm light serves as a visual warning, alerting individuals to the door's operation and ensuring they stay clear of the moving door. This feature is especially useful in busy industrial environments where noise levels can be high, and visual signals are more effective.

Emergency buttons provide an immediate way to stop the door's operation in case of an emergency. Located conveniently near the door, these buttons allow for quick and easy access to halt the door's movement, preventing accidents and ensuring the safety of all personnel in the vicinity.

Open methods

PVC rapid roll up doors usually offer five different methods for opening, allowing you to choose the one that best suits your operational needs:


Vehicle Loop Detector:

This method automatically opens the door when a vehicle approaches, ensuring seamless entry and exit for transport vehicles without manual intervention.


Radar Sensor:

Ideal for busy areas, the radar sensor detects motion and opens the door, providing a touchless and efficient solution for high-traffic zones.


Push Button:

A simple and reliable method, the push button allows manual control over the door, suitable for situations where precision timing is crucial.


Pull Switch:

The pull switch offers a straightforward and accessible way to open the door, often used in industrial settings where ease of use is paramount.


Remote Control:

For ultimate convenience, the remote control enables the door to be opened from a distance, perfect for environments where mobility is necessary.

Each of these options enhances the functionality of PVC high speed doors, catering to diverse operational requirements and ensuring optimal performance in various settings.

Advantages

Speed



PVC high speed roll up doors are designed to operate at a fast speed, as indicated by their name. This rapid opening and closing mechanism enhances productivity and energy efficiency across a range of industrial applications.



Energy Efficiency



PVC rapid roller shutter doors are designed to minimize heat loss or gain, making them an energy efficient choice. The quick opening and closing speed helps maintain a stable indoor temperature in climate controlled environments.



Safety



Safety features like sensors and safety edges are frequently integrated into these doors to ensure accidents or injuries are avoided. In case of detecting an obstacle, they are programmed to automatically reverse or stop.



Durability



PVC fast rolling shutter doors are built using strong materials, ensuring their longevity and ability to endure the demands of industrial settings. They are impervious to corrosion and engineered to necessitate minimal upkeep.



Containment



These doors help contain dust, debris, and contaminants, which is essential in clean room environments or areas with specific hygiene requirements.



Space-Saving



PVC quick doors are often designed to take up minimal space. Their vertical roll up design allows for efficient use of space both in front of and behind the door.



Wind Resistance



Many PVC high speed roller shutter doors are equipped with wind-resistant features, which make them suitable for outdoor applications. They can withstand strong winds and maintain a secure seal.



Easy Repairs



When there's damage, you don't always have to replace the entire door - you can just replace certain sections, which can be more cost effective.
