Aluminum Alloy Spiral Rapid Roller Shutter Door

Metal Hard Spiral Fast Rolling Shutter Door

Aluminum Alloy Spiral High Speed Coiling Door

Aluminum Alloy Spiral High Speed Rolling Door

Aluminum Alloy Spiral High Speed Door

Elevate your commercial or industrial space with YUOU's aluminum alloy spiral high speed doors. Designed for environments that require frequent access while maintaining environmental control, this door is ideal for a variety of commercial and industrial settings. As an excellent industrial door manufacturer in China, we provide products with lower prices without compromising on quality. Our aluminum alloy spiral high speed doors feature fast operation and a spiral design for increased efficiency. Can be customized to your liking.

Price:
Starting from US $2079/set

Color:	White Grey Yellow Blue Red Other RAL color
Frame material:	Color steel Stainless steel
Transparent window:	Yes No
Safety Airbag:	Yes No
Blocked board:	Yes No
Availability:

Inquire Add to Basket

Max dimension

width * height 8000mm*8000mm

Power supply

220±10%V/380V

50/60Hz

IP55

Max. opening speed

2.0m/s

Max. closing speed

1.0m/s

Wind resistance

35m/s (Class 12)

Sound insulation level

25DB

Water tightness

30Pa

K Value

0.4W/m2.K

Thermal Conductivity

1.9W/m2.K

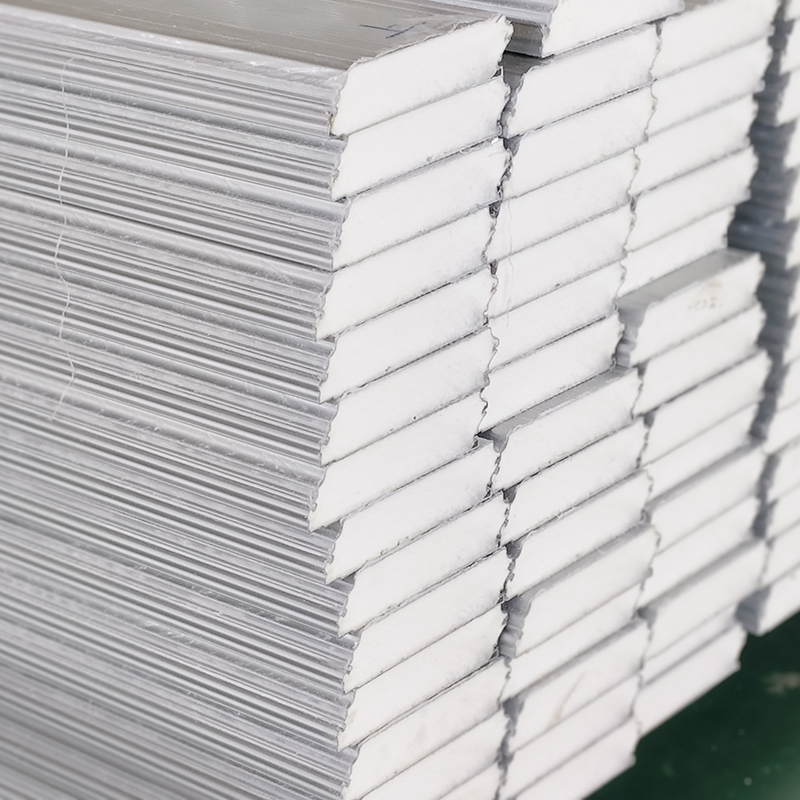

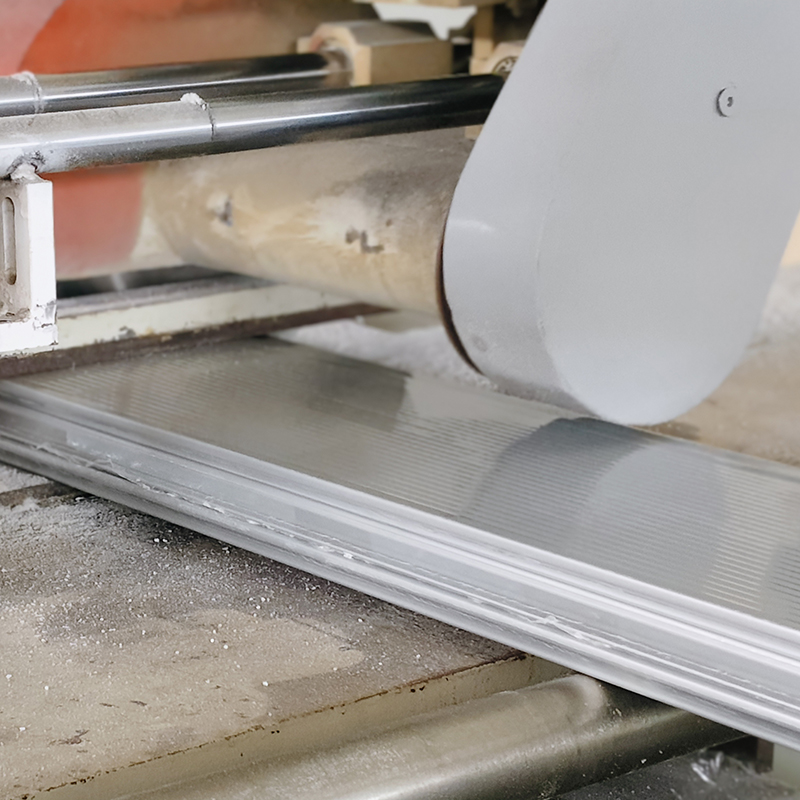

Door panel

Feature:Thermal insulated

Material and specification:43mm double layer (0.7mm/layer) aluminum alloy sandwich panel,

foaming density 40kg/m3, high quality nylon wheels and 2.5mm thickness aluminum alloy hinges.

Frame and Rails

Material:2.5mm powder coated galvanized steel/304 stainless steel.

Aluminum spiral high speed doors are usually not fitted with a guard box at the top. You can choose whether to install the guard box or not according to the demand.

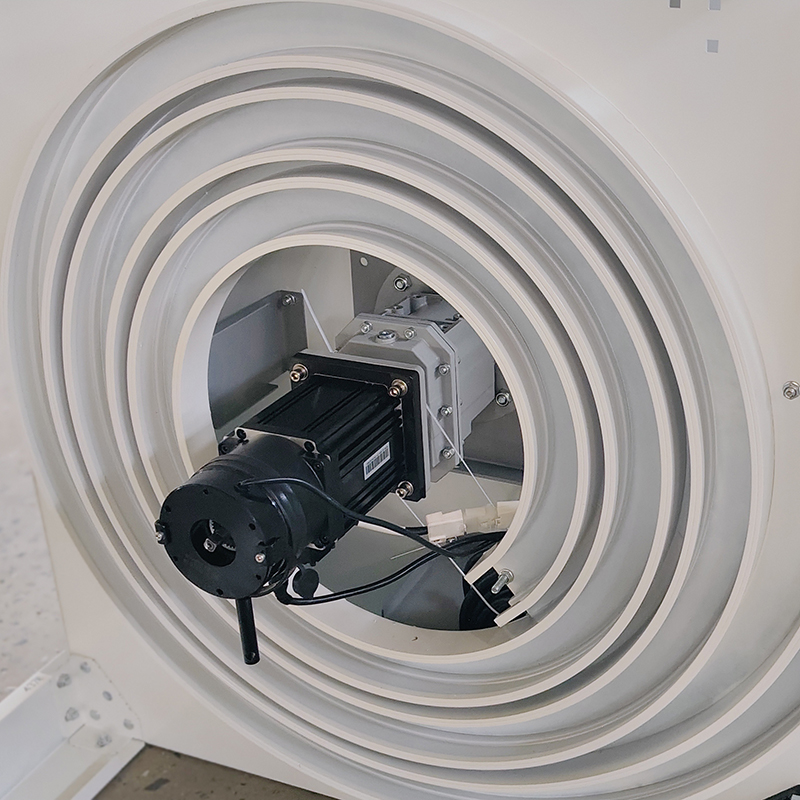

Motor and controller

Aluminum spiral rapid roll up door selects Italian leading servo technology motor and control box, quality is guaranteed.

Advantage: Absolute encoder+inbuilt incremental encoder,double encoder ensure low failure rate.

Safety device

Aluminum spiral fast roller shutter doors are usually heavy, so they are equipped with some safety equipment to prevent accidents.

Safety device

These devices can provide an emergency plan When the door encounters a fault.

Open metohds

Aluminum spiral high speed doors usually offer five different methods for opening, allowing you to choose the one that best suits your operational needs:

Vehicle Loop Detector:

This method automatically opens the door when a vehicle approaches, ensuring seamless entry and exit for transport vehicles without manual intervention.

Radar Sensor:

Ideal for busy areas, the radar sensor detects motion and opens the door, providing a touchless and efficient solution for high-traffic zones.

Push Button:

A simple and reliable method, the push button allows manual control over the door, suitable for situations where precision timing is crucial.

Pull Switch:

The pull switch offers a straightforward and accessible way to open the door, often used in industrial settings where ease of use is paramount.

Remote Control:

For ultimate convenience, the remote control enables the door to be opened from a distance, perfect for environments where mobility is necessary.

Each of these options enhances the functionality of hard spiral high speed doors, catering to diverse operational requirements and ensuring optimal performance in various settings.
