Zipper High Speed Door

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Zipper high speed door, also known as zipper fast/rapid door, is a high speed industrial door used in various commercial and industrial applications. It is suitable for areas with very strict indoor hygiene and cleanliness requirements. This kind of door has a zipper installed on the side, which can automatically return to the track when it is hit. As a China industrial door manufacturer, we have a cost advantage. Our products are cheaper and more cost-effective with the same quality.
  • Starting from US $1079/set

Color:
Transparent window:
Hood cover box material :
Safety Airbag:
Pedestrian-vehicle segregation radar:
Availability:
Max dimension
5000mm wide*5000mm high
Max opening Speed
2.5m/s
Max closing speed
1.0m/s
Wind resistance
Beaufort scale 8 (25m/s)
Power supply
1-phase 220±10%V
50/60HZ
Protection level of electric
IP55
Control system
Servo type
Driving syste
Servo motor

Structure diagram


CAD drawings clearly show the structure of the Zipper pvc rapid roller shutter door. Including door curtain, track, scroll, motor, control box and so on. You can choose to add windows, police lights and other non-standard configurations. We will draw exclusive CAD drawings for each customer. Let you have a clear understanding of your favorite rapid rolling door.

PVC Fabric

PVC environmentally friendly material, safe, durable, with multiple colors to choose,Standard thickness:1.0mm(950g/sqm).
Other thickness available:1.2mm-1.5mm;Flame resistant material.

Frame and Rails

Including two guide rails,one top cover box and motor cover.Galvanized steel or stainless steel.

Thickness:1.5mm guide rail;1.0mm cover box.

Standard material:Galvanized steel,surface is painted.

Optional material:304 stainless steel or aluminum alloy.

Self-Repairing rail structure

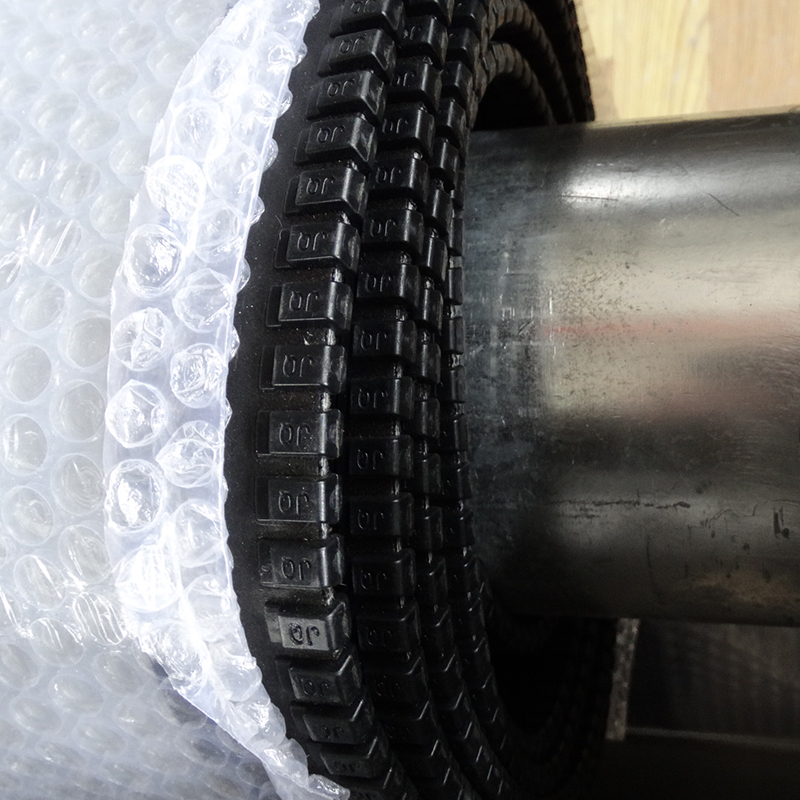

The biggest feature of the zipper fast door is that the side of the door is connected to the track through a zipper.

When the curtain comes off the track, the reset wheel on the zipper will help the zipper automatically return to its original position.

Motor and controller

Italy servo technology motor and controller with English interface.

Absolute encoder+inbuilt incremental encoder,double encoder ensure low failure rate.

Photocell sensor

When there is a human or vehicle under the door,the door will stop closing and get up automatically.This will avoid accident collisions.

Safety bottom edge

When the bottom bar of the door touches something,it will stop closing immediately and get up automatically.

Alarm light and emergency buttons

Alarm lights and emergency buttons are critical safety features for high-speed doors. The alarm light serves as a visual warning, alerting individuals to the door's operation and ensuring they stay clear of the moving door. This feature is especially useful in busy industrial environments where noise levels can be high, and visual signals are more effective.

Emergency buttons provide an immediate way to stop the door's operation in case of an emergency. Located conveniently near the door, these buttons allow for quick and easy access to halt the door's movement, preventing accidents and ensuring the safety of all personnel in the vicinity.

Open methods

Open methods
Zipper rapid roll up doors usually offer five different methods for opening, allowing you to choose the one that best suits your operational needs:



Vehicle Loop Detector:

This method automatically opens the door when a vehicle approaches, ensuring seamless entry and exit for transport vehicles without manual intervention.


Radar Sensor:

Ideal for busy areas, the radar sensor detects motion and opens the door, providing a touchless and efficient solution for high-traffic zones.


Push Button:

A simple and reliable method, the push button allows manual control over the door, suitable for situations where precision timing is crucial.


Pull Switch:

The pull switch offers a straightforward and accessible way to open the door, often used in industrial settings where ease of use is paramount.


Remote Control:

For ultimate convenience, the remote control enables the door to be opened from a distance, perfect for environments where mobility is necessary.

Each of these options enhances the functionality of PVC high speed doors, catering to diverse operational requirements and ensuring optimal performance in various settings.


1.High Speed Operation:

Zipper fast roll up doors are engineered to facilitate swift opening and closing, thereby aiding in the regulation of environmental conditions, minimizing energy wastage, and enhancing the movement of people in busy locations.


2.Energy Efficiency:

The quick operation of zipper quick doors minimizes the amount of time the door is open, helping to maintain indoor temperatures and reduce energy consumption in climate-controlled environments.


3.Durability:

The doors are constructed to endure the demands of industrial and commercial applications, utilizing durable materials that can withstand damage, ensuring they are a lasting investment.


4.Safety:

Zippered rapid roll up doors are equipped with safety features such as photoelectric sensors, airbags, and infrared and warning lights to prevent accidents or injuries by detecting obstacles and automatically stopping or reversing door movement.


5.Minimal Maintenance:

Due to their sturdy construction and reliable components, zipper fast doors generally require minimal maintenance, reducing downtime and repair costs.


6.Space-Saving Design:

Zipper fast doors often feature a roll-up design, which takes up minimal space both in front of and behind the door, making them suitable for locations with limited space.


7.Self-Reset Function:

The self-repairing zipper design of the zipper fast roller shutter door, and the reset rollers on the track enable the zipper door to return to its original position by itself in case of impact. This design greatly reduces the failure rate of the zipper quick rolling door and reduces maintenance costs.
