Stacking High Speed Door

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

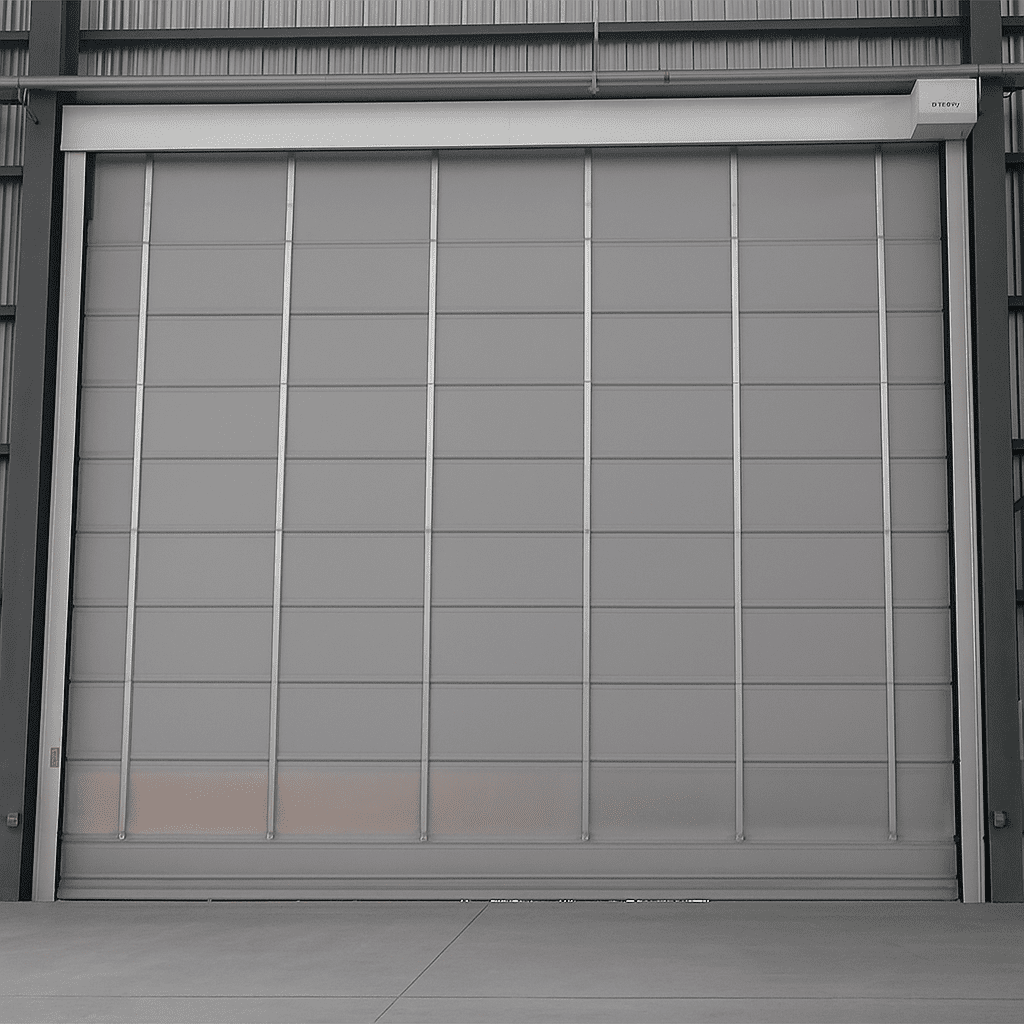

Stacking high speed doors, also known as stacking fast/rpaid doors, are characterized by rapid opening and stacking rising. These doors are commonly used in a variety of industrial and commercial settings, particularly logistics, warehouses, and manufacturing facilities.This product is great for larger sizes. As a China industrial door manufacturer, we have cost advantages
  • Starting from US $1099/set

Color:
Hood cover box material :
Transparent window:
Pedestrian-vehicle segregation radar:
Availability:

Technical Data

Max dimension
width * height 13000mm*8000mm
Power supply
220±10%V 50/60Hz
Output power 0.75-1.5KW
Max speed
open 1.2m/s close 0.6m/s
Opening frequency
1000 times /day
Wind resistance
28m/s (Class 10)
Air tightness
leakage through the door is 95m³/hour under 30 pa pressure

Structure diagram

structure diagram

Product Details

PVC Fabric

Insulated PVC sandwich fabric: double skin is 0.8mm PVC fabric, and inside is filled with high density insulating rock wool, total thickness is 20mm.

Wind Resisting Structure

There are several high-strength aluminum rod were used to connect PVC fabric as a whole.

When faced with big wind, such rods will offer big support, special belt structure is adopted to lift door up and down by revolving roller.

Nylon strap

When the door is opened, the nylon straps lift the bottom of the door upwards.

Frame and Rails

Two guide rails, which includes one top cover and one motor cover included.Thickness:1.5mm for guide rail,1.0mm for cover box.
Standard material: Galvanized steel,surface is painted.Optional material: 304 stainless steel or aluminum alloy.

Motor and Controller

Italy servo technology motor and controller with English interface.Absolute encoder+inbuilt incremental encoder,double encoder ensure low failure rate.

Photocell sensor

When there is a human or vehicle under the door,the door will stop closing and get up automatically.This will avoid accident collisions.

Safety bottom edge

When the bottom bar of the door touches something,it will stop closing immediately and get up automatically.

Alarm light and emergency buttons

Alarm lights and emergency buttons are critical safety features for high-speed doors. The alarm light serves as a visual warning, alerting individuals to the door's operation and ensuring they stay clear of the moving door. This feature is especially useful in busy industrial environments where noise levels can be high, and visual signals are more effective.

Emergency buttons provide an immediate way to stop the door's operation in case of an emergency. Located conveniently near the door, these buttons allow for quick and easy access to halt the door's movement, preventing accidents and ensuring the safety of all personnel in the vicinity.

Open methods

Stacking fast doors usually offer five different methods for opening, allowing you to choose the one that best suits your operational needs:


Vehicle Loop Detector:

This method automatically opens the door when a vehicle approaches, ensuring seamless entry and exit for transport vehicles without manual intervention.


Radar Sensor:

Ideal for busy areas, the radar sensor detects motion and opens the door, providing a touchless and efficient solution for high-traffic zones.


Push Button:

A simple and reliable method, the push button allows manual control over the door, suitable for situations where precision timing is crucial.


Pull Switch:

The pull switch offers a straightforward and accessible way to open the door, often used in industrial settings where ease of use is paramount.


Remote Control:

For ultimate convenience, the remote control enables the door to be opened from a distance, perfect for environments where mobility is necessary.

Each of these options enhances the functionality of Stacking high speed doors, catering to diverse operational requirements and ensuring optimal performance in various settings.

Advantages

1. Efficient Stacking and Unstacking:

Stacking high speed doors are designed to streamline the process of stacking and unstacking items or vehicles, which is particularly valuable in logistics and warehouse operations.


2. High-Speed Operation:

The rapid opening and closing of stacking rapid doors reduce wait times and improve the flow of goods and personnel, enhancing overall productivity.


3. Space Optimization:

The stacking mechanism allows for efficient use of space in areas with limited overhead clearance, both in front of and behind the door.


4. Energy Efficiency:

Proper sealing and insulation are essential for regulating temperature and minimizing energy expenses, rendering these doors ideal for environments that are sensitive to temperature fluctuations.


5. Safety:

The inclusion of safety features and sensors serves to improve the overall safety of both personnel and vehicles, effectively reducing the risk of accidents and promoting seamless operation.


6. Durability:

Stacking fast doors are built to withstand frequent use and harsh industrial conditions, reducing maintenance and repair costs.



Stacking high speed doors are valuable assets in industrial environments where efficient access, temperature control, and space optimization are essential for smooth operations and improved productivity.
