Mechanical Dock Shelter

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

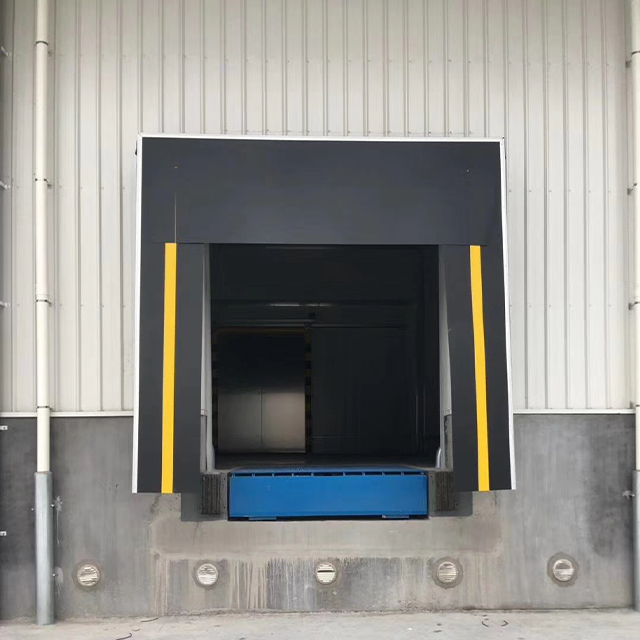

The mechanical dock shelter serves as a crucial piece of equipment utilized during the loading and unloading processes of trucks at a loading dock or bay. Its primary function is to establish a secure seal between the truck and the dock, thereby facilitating a controlled and safeguarded environment for the transfer of goods. In comparison to alternative dock equipment like dock seals, mechanical dock shelters offer a superior seal due to their adjustability to accommodate different truck sizes and shapes.
  • Starting from US $459/set

Availability:

Product Description




Technical Data

Size
3400*3400mm or customized
Color
Standard color is black
Material
Polyester fiber
Aluminum alloy and galvanized square pipe
Adjustable height rang
1000mm
Operating temperature rang
-35ºC-70ºC
Side PVC Material
Tensile force 250N
thickness 0.5mm
unit weight 0.7kg/m2
Product structure
Internal aluminum frame+Exterior PVC curtain
Aluminum frame
The rear profile size is 50*44mm
the front profile size is 45*44mm
the frame size is 50*25*2.5mm
the front press plate size is 34*4.8mm

Product Details

Front sealing curtain
Relevant data:Longitudinal tensile strength >550N, transverse tensile strength >900N, maximum tensile strength 250N/mm², metal friction coefficient 0.3, PVC friction coefficient 0.4, thickness 3mm, unit weight 3.6kg/m2.

Side curtain

Relevant data:Tensile force 250N, thickness 0.5mm, unit weight 0.7kg/m2.

Internal frame

Material:Aluminum alloy.

Frame size:The rear profile size is 50*44mm, the front profile size is 45*44mm, the frame size is 50*25*2.5mm, and the front press plate size is 34*4.8mm.
The internal frame supports the curtain, allowing the product to fill the gap between the truck and the door frame.

Accessories

Advantages

1. Improved Environmental Control

The mechanical dock door seals are designed to create an effective barrier between the inside of the facility and the external environment. This improved environmental control helps maintain consistent indoor temperatures, whether it's keeping the interior cool in warm climates or preserving heat in colder conditions. By reducing the impact of external weather elements, these seals help ensure optimal working conditions inside the facility.

2. Provides a secure seal

A key feature of mechanical dock door seals is their ability to form a tight, secure seal around the docked vehicle. This prevents air leakage, dust, dirt, and pests from entering the building, ensuring a clean and controlled environment. The secure seal enhances security, reduces the need for constant cleaning, and protects stored goods from potential contamination.

3. Improve energy efficiency

By minimizing air exchange between the inside and outside, mechanical door seals significantly improve energy efficiency. They reduce the strain on HVAC systems by keeping the temperature stable inside the facility, resulting in lower energy consumption and reduced utility costs. The enhanced insulation provided by these seals helps facilities operate in a more environmentally friendly and cost-effective manner.

4. Improve transportation efficiency

Mechanical dock door seals help streamline the loading and unloading process by ensuring trucks are properly aligned and sealed at the dock. This reduces downtime caused by misalignment and air leaks, allowing for faster, more efficient movement of goods in and out of the facility. The increased operational efficiency boosts overall productivity and helps maintain the flow of goods without interruptions.


Mechanical dock shelters offer a reliable barrier between a loading dock and a truck, delivering advantages in environmental control, energy efficiency, safety, and productivity. They are a beneficial investment for companies that depend on streamlined and regulated loading and unloading processes at their docks.
