Dock Leveler

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

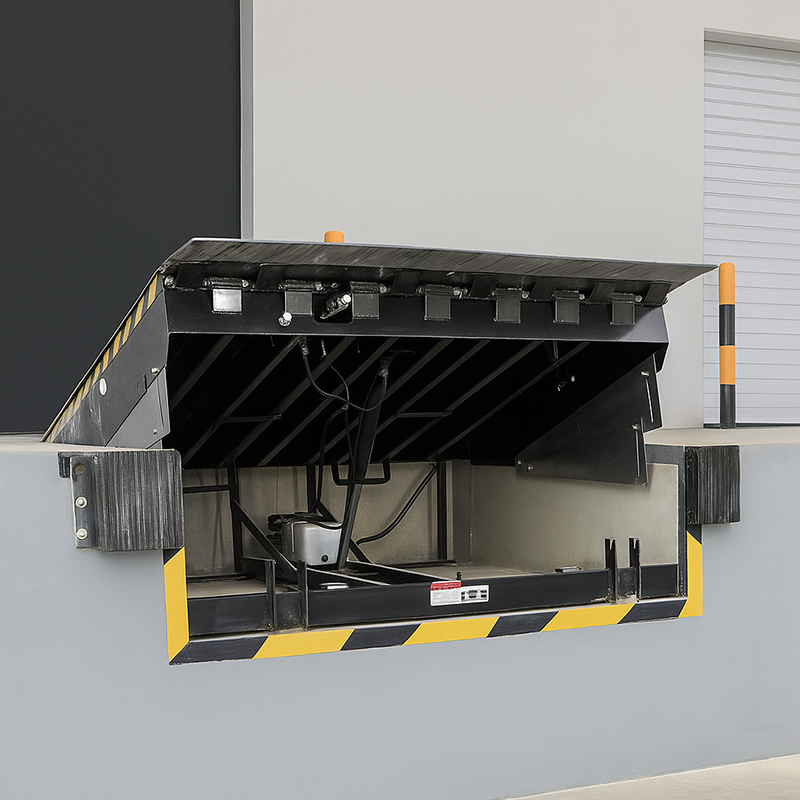

Dock leveler is a piece of equipment commonly found in loading bays at warehouses, distribution centers, and manufacturing facilities. Its primary purpose is to bridge the height difference between a loading dock and the bed of a truck or trailer to facilitate the safe and efficient loading and unloading of goods. Dock levelers are essential for ensuring smooth material handling operations and preventing accidents.
  • Starting from US $1359/set

Color:
Operate method:
Carrying capacity:
Availability:

Product Description

The hydraulic dock leveler automatically adjusts height at the push of a button, thus simplifying the process of loading and unloading goods and improving loading and unloading efficiency. Both light and heavy cargo hydraulic dock levelers are well suited. Moreover, the hydraulic dock leveler is easy to operate and low maintenance, which improves working efficiency and safety.

Technical Data

Power supply
1Phase 220V
3 Phase 380V
Adjust scope
± 300mm
Power of motor
0.75-2.2KW
Standard leveler size
2500x2000x500mm
Lip size
400mm

Product Details

Load Capacity

The overall assembly can bear 120% load of standard nominal load capacity. Under static pressure of 24 hours the deformation is within 3mm. And after pressure released, the deformation will recover.

Internal structure

The high-strength-shaped beam design ensures high load and long-term operation without deformation.

Hinge and shaft

Hinge and shaft are super high temperature heat treated to reduce its deformation.

Hydraulic drive station

Whole set of hydraulic drive station is imported from Europe,with stable power output. It can work under high frequency because of very low work temperature of oil.High standard seal avoids oil leaking.

Anti-rolling skirts and support rod

Anti-rolling skirts are provided on both sides to prevent accidental injury from reaching the platform.
There is a support rod that ensures that maintenance personnel enter the docking bridge for maintenance.

Features

1.Adjustable Platform:

Dock levelers have an adjustable platform that can be raised or lowered to align with the height of the truck or trailer, ensuring a smooth transition.


2.Various Types:

Various kinds of dock levelers exist, such as hydraulic, mechanical, and air-powered, each employing its own platform operation technique.


3.Lip Extension:

Most dock levelers have a hinged lip that extends from the edge of the platform to create a seamless bridge between the dock and the truck or trailer bed.


4.Safety Features:

Safety features such as lip locks, safety maintenance struts, and automatic lip extension mechanisms are included in dock levelers to prevent accidents and injuries.


5.Durability:

They are built to withstand heavy loads, consistent use, and the harsh conditions of industrial environments.


6.Weather Sealing:

 Some dock levelers are equipped with weather seals to keep out external elements like rain, snow, and debris.


Advantages

1. Efficiency:

Dock levelers significantly improve the efficiency of loading and unloading operations by reducing the time and effort required to move goods between the facility and the truck or trailer.


2.Safety:

They enhance safety by providing a stable, level surface for material handling equipment, reducing the risk of accidents, and ensuring a secure transition for workers.


3.Easy to operate:

With the hydraulic dock leveler, the dock operator is not required to use their body weight to adjust the bridge's position. Furthermore, there is no need to bend down or extend their reach to manually operate the chain for raising the hydraulic dock leveler.


4.Load Capacity:

They have a high load-bearing capacity, enabling the safe handling of heavy and oversized loads.


5.Minimize Product Damage:

The level and even transition provided by loading dock levelers help minimize product damage during the loading and unloading process.


6.Energy Efficiency:

By maintaining a proper seal between the truck and the facility, truck dock levelers contribute to energy efficiency by reducing heating and cooling loss.


7.Accessibility:

They make loading bays more accessible, enabling efficient material handling for a wide range of industries.


8.Longevity:

Well-maintained truck dock levelers can have a long service life, offering a good return on investment.


9.Improved Workflow:

Dock levelers enhance the workflow and productivity of logistics operations by streamlining the transfer of goods.


10.Smooth Transition:

The lip extension ensures a smooth and seamless transition for forklifts, pallet jacks, and other material handling equipment.



Dock levelers play a crucial role in loading bays by bridging the gap between the facility and the truck or trailer. They offer benefits such as improved efficiency, safety, versatility, durability, and energy efficiency, which are essential for modern logistics and material handling operations. Selecting the right type of dock leveler depends on the unique needs of the loading bay and the type of goods being transported.
