Enhance your industrial or commercial space by installing our durable industrial sectional doors, specifically designed to provide secure and efficient access control. Our doors are perfectly suited for wide openings in warehouses, loading docks, storage facilities, manufacturing plants, and commercial garages, guaranteeing both safety and productivity. As the foremost industrial door manufacturer in China, we provide competitively priced products without compromising on quality. Tailor-made to meet your specific requirements, our doors offer unmatched quality and affordability.
Engineered for efficiency and durability, our industrial sectional doors are designed to optimize warehouse operations, enhance energy savings, and ensure security in high-demand environments.
Security
Effectively avoid accidents caused by accidental falls, providing reliable safety for high-frequency use places. We can equip industrial sectional doors with safety devices. For example, fall prevention device, this device can immediately start the locking mechanism when the spring or wire rope other than broken, to prevent the door body suddenly fall, to protect the site personnel and equipment safety.
Safeguard the safety of passage. For example airbag device. Airbags can be installed at the bottom of the door body. When an obstacle is detected during the descent of the door, the system will automatically stop the descent in order to prevent people from being pinched or objects from being damaged. It is very suitable for places with dense flow of people who need to enter and exit frequently.
It also passes smoothly during power outages without delaying work. Manual emergency device. We are equipped with a sliding door motor with its own chain, which is used in the event of a power outage when the door needs to be opened in an emergency. The door can be opened by pulling the chain.
Protects operators and passers-by. Door panels can be selected as anti-pinch type door panels to avoid pinching the operator during the opening and closing of the door panels.
Thermal insulation and energy saving

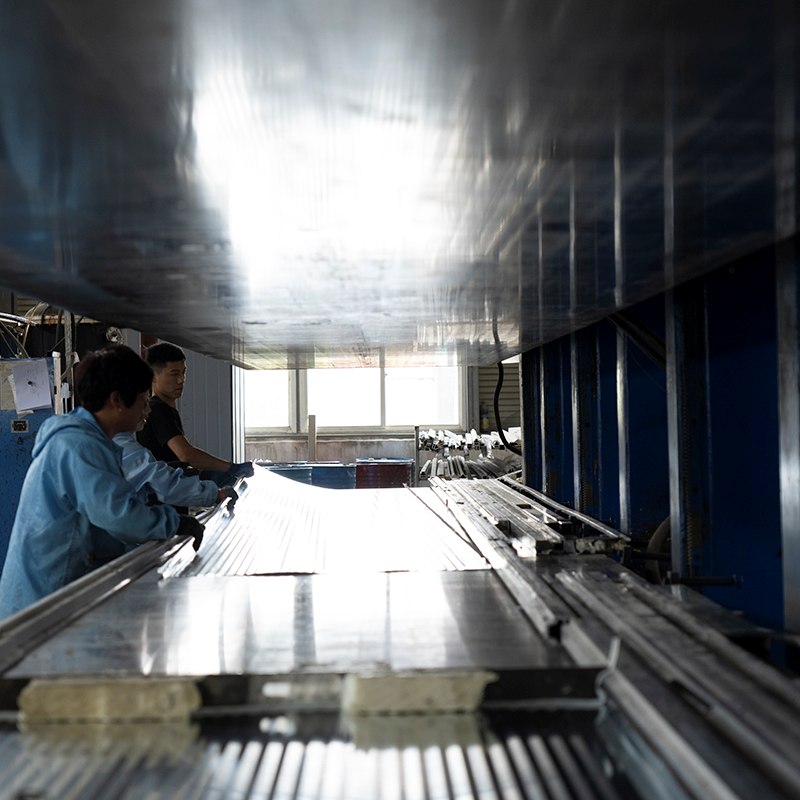

Maintains indoor temperature, saves energy consumption, reduces costs and promotes environmental protection. The sliding door has a heavy door panel, and the interior of the door panel is filled with a large amount of polyurethane foam, with a foam density of up to 48±2kg/m³. This design can greatly reduce the heat exchange between indoor and outdoor, preserving the indoor temperature. This reduces the operation of air conditioning, which saves costs and protects the environment.
Space-saving design
It does not affect the operation of forklifts, trucks and shelves inside and outside the door. Industrial sliding door adopts the opening method of vertical rise, the door plate slides upward along the track, making full use of the height space of the building, and turning the originally unused vertical space into the activity area of the door body.
Building suitability
There's no need to worry about whether or not your building can be fitted with a sectional door. Our sliding lift doors have a variety of lifting options to choose from, which are used to adapt to different situations in your building. You are guaranteed to be able to use our sliding doors on your building. The above 8 boosts will satisfy most building situations. If there are other needs you can contact us for customization.
Wind resistance
Our industrial sectional doors are made of high-quality galvanized steel material with sturdy construction. The doors are also available with optional thickened back reinforcement to further enhance wind resistance. In our factory tests, it is capable of resisting class 12 winds. Not only is the door body safe and stable, it also safeguards warehouse goods and personnel, providing solid and reliable protection for buildings located in harsh climatic conditions.
Engineered for efficiency and durability, our industrial sectional doors are designed to optimize warehouse operations, enhance energy savings, and ensure security in high-demand environments.
Security
Effectively avoid accidents caused by accidental falls, providing reliable safety for high-frequency use places. We can equip industrial sectional doors with safety devices. For example, fall prevention device, this device can immediately start the locking mechanism when the spring or wire rope other than broken, to prevent the door body suddenly fall, to protect the site personnel and equipment safety.
Safeguard the safety of passage. For example airbag device. Airbags can be installed at the bottom of the door body. When an obstacle is detected during the descent of the door, the system will automatically stop the descent in order to prevent people from being pinched or objects from being damaged. It is very suitable for places with dense flow of people who need to enter and exit frequently.
It also passes smoothly during power outages without delaying work. Manual emergency device. We are equipped with a sliding door motor with its own chain, which is used in the event of a power outage when the door needs to be opened in an emergency. The door can be opened by pulling the chain.
Protects operators and passers-by. Door panels can be selected as anti-pinch type door panels to avoid pinching the operator during the opening and closing of the door panels.
Thermal insulation and energy saving
Maintains indoor temperature, saves energy consumption, reduces costs and promotes environmental protection. The sliding door has a heavy door panel, and the interior of the door panel is filled with a large amount of polyurethane foam, with a foam density of up to 48±2kg/m³. This design can greatly reduce the heat exchange between indoor and outdoor, preserving the indoor temperature. This reduces the operation of air conditioning, which saves costs and protects the environment.
Space-saving design
It does not affect the operation of forklifts, trucks and shelves inside and outside the door. Industrial sliding door adopts the opening method of vertical rise, the door plate slides upward along the track, making full use of the height space of the building, and turning the originally unused vertical space into the activity area of the door body.
Building suitability
There's no need to worry about whether or not your building can be fitted with a sectional door. Our sliding lift doors have a variety of lifting options to choose from, which are used to adapt to different situations in your building. You are guaranteed to be able to use our sliding doors on your building. The above 8 boosts will satisfy most building situations. If there are other needs you can contact us for customization.
Wind resistance
Our industrial sectional doors are made of high-quality galvanized steel material with sturdy construction. The doors are also available with optional thickened back reinforcement to further enhance wind resistance. In our factory tests, it is capable of resisting class 12 winds. Not only is the door body safe and stable, it also safeguards warehouse goods and personnel, providing solid and reliable protection for buildings located in harsh climatic conditions.
Industrial sectional doors are specifically made to suit the varying demands of different industrial settings. One of their main highlights is the versatility in lifting method, which can be customized based on the dimensions above the door opening.
①Standard lifting: This method requires the least amount of space above the door opening. It is ideal for areas with limited headroom, ensuring smooth and efficient door operation without requiring significant modifications to the existing structure.
②High lifting: This method requires more space above the door opening compared to standard lifting. It is suitable for environments where there is ample vertical space, allowing the door to lift higher and out of the way, providing more clearance for large vehicles and equipment.
③Vertical lifting: This method requires the most space above the door opening. It is perfect for facilities with high ceilings, as the door lifts straight up along the wall, maximizing usable floor space and offering unobstructed access.

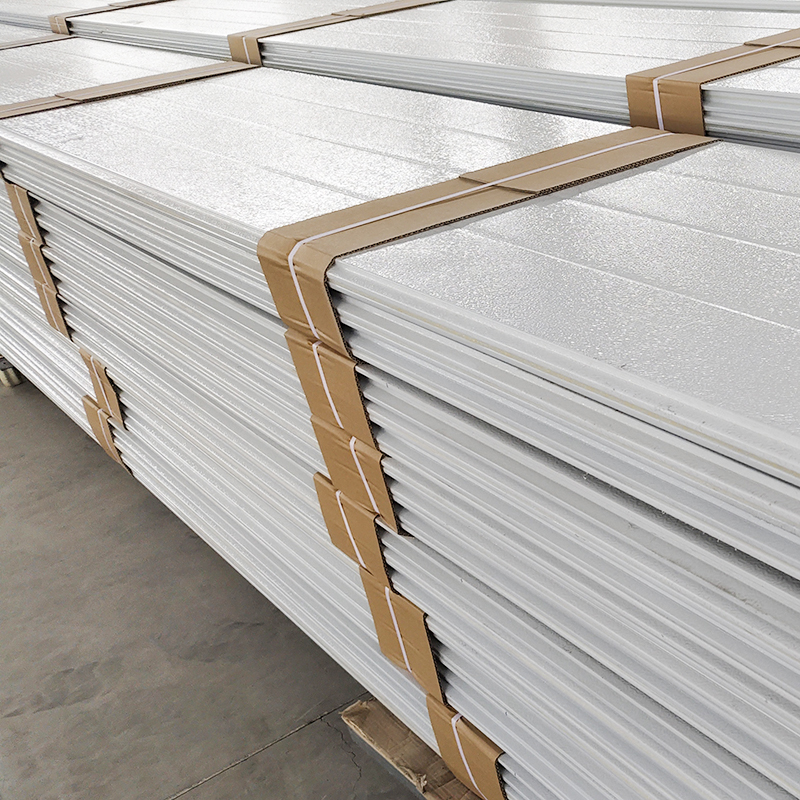

Foam sandwich panels are utilized as the foundation for industrial sectional doors. The galvanized steel plate, with a thickness of 0.4mm, is coated with a layer of powder for added protection.The steel plate can be pre-colored before the coating process.
Motor
Top brand "Xiangfei"
Controlling program securing smooth movement.
Fast-action brake and accurate mechanical limit.
Inbuilt with Thermal overload protector.
With manual chain to operate during power failure.
High-grade lubricate grease,“0”maintenance.
Controller
UP/DOWN/STOP/EMEFGENCY
Safety sensor is available
Remote control is available
Simply wire
Spring Safety device
The balance spring balances the weight of the door panel of an industrial sectional door by pulling the door panel by means of a wire rope. Spring brake device: anti-broken Service life: 100 thousand opening and closing Driving force: 140N Chosen according to door size, weight and lifting pattern
Falling Protection Devices
Industrial sectional doors are usually very heavy and can cause serious accidents if the door suddenly falls during opening.
This fall prevention device can prevent the door from falling suddenly and increase safety.
Door bottom is equipped with droping avoid steel cord, securing the accident dropping within 5cm.
Guide rail
Special design three angle wheel brace secure smooth rolling of wheel
Mute nylon wheel, noise level: <=60db
Beam seals
EPDM sealing rubber is installed onto top, bottom and periphery.
The beam seal can increase the air tightness of the sectional door and reduce the gap.
Make the sectional door more heat insulation and wind resistance.
Manual device(Smaller size only)
When the door size is small, you can choose to open the door manually only or electric + manual.
Industrial sectional doors are usually heavy and difficult to operate manually, so only manual options are available for smaller door sizes.
Bottom Wireless safety airbag
When the door encounters an obstacle, the air bag detects and stops the door's operation.
(This function is non-standard, please note it if you need.)
Optional parts
Window
Small door
Industrial sectional doors are available with or without windows and small doors.
When the door size is large, it is recommended that you choose to have a small door and window to facilitate light transmission and human access.
