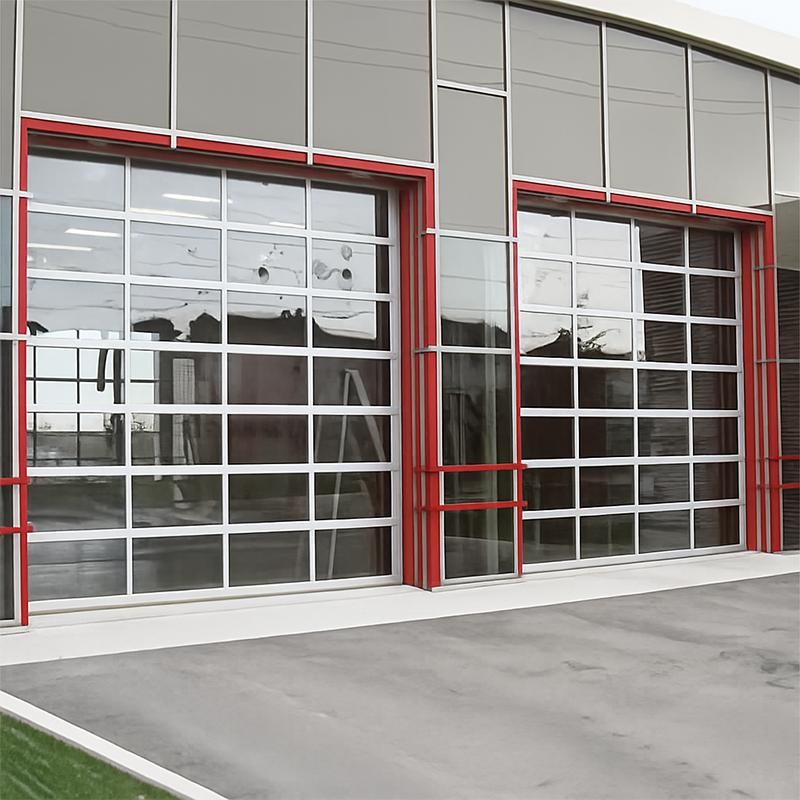

Full View Glass Sectional Garage Door

Upgrade your space with glass garage doors (also known as transparent garage doors or glass sectional doors) from YUOU. Unlike traditional garage doors, which are often made from sandwich panels, our glass garage doors are available in Glass or PC material to provide a clear, unobstructed view into the building and surrounding areas. Ideal for garages, commercial shops and holiday homes, these doors enhance aesthetics while maximizing visibility. As China's leading industrial door manufacturer, we offer lower price products without compromising on quality.

Send an inquiry now, you will get:

Free quote
Free exclusive project drawings
Product development service
After-sales service
18-month warranty service
Large quantity discounts

Price:
Starting from US $909/set

Color:	White Black Other RAL color
Door panel:	Glass PC
Small door:	Yes No
Availability:

Inquire Add to Basket

Technical Data

Max dimension

width * height 12000mm*8000mm

Panel material

Glass

Polycarbonate

Frame material

Aluminum alloy

Power supply

220±10%V/380V

50/60Hz

IP55

Opening and closing speed

20-40cm/s

Wind resistance

28-35m/s (Class 10-12)

Sound insulation level

24DB

Insulation level

0.38W/M°C

Water tightness

30Pa

K Value

1.5W/M2.K

Thermal Conductivity

<= 0.033W/M.K

Product Details

Lifting way

Industrial sectional doors are specifically made to suit the varying demands of different industrial settings. One of their main highlights is the versatility in lifting method, which can be customized based on the dimensions above the door opening.

①Standard lifting: This method requires the least amount of space above the door opening. It is ideal for areas with limited headroom, ensuring smooth and efficient door operation without requiring significant modifications to the existing structure.

②High lifting: This method requires more space above the door opening compared to standard lifting. It is suitable for environments where there is ample vertical space, allowing the door to lift higher and out of the way, providing more clearance for large vehicles and equipment.

③Vertical lifting: This method requires the most space above the door opening. It is perfect for facilities with high ceilings, as the door lifts straight up along the wall, maximizing usable floor space and offering unobstructed access.

Panle (Finger safe type)

Glass sectional garage doors are available in two different types of door panel materials: Glass or Polycarbonate.

The frame of these doors is constructed with a two-layer 1.2mm aluminum alloy, providing durability and strength.

The surface of the doors is coated with electrostatic coating, enhancing its appearance and protecting it from external elements.

With a total thickness of 40mm, these doors offer both functionality and aesthetic appeal.

Motor

Top brand "Xiangfei"

Controlling program securing smooth movement.

Fast-action brake and accurate mechanical limit.

Inbuilt with Thermal overload protector.

With manual chain to operate during power failure.

High-grade lubricate grease,“0”maintenance.

Controller

UP/DOWN/STOP/EMEFGENCY

Safety sensor is available

Remote control is available

Simply wire

Guide rail

The unique design of the three-angle wheel brace ensures the wheel rolls smoothly and securely.

Mute nylon wheel, noise level: <=60db

Galvanized steel is commonly used to manufacture the tracks of glass sectional garage doors. This material offers superior thickness and stability when compared to aluminum, making it the ideal choice for creating a robust and dependable track system.

Spring safety device

The anti-broken spring brake device ensures the safety and durability of the glass garage door by effectively preventing any breakage.

With a service life of 100 thousand opening and closing cycles, the balance spring guarantees long-lasting performance and reliability for the glass garage door.

The driving force of 140N provided by the balance spring ensures smooth and efficient operation of the glass garage door, allowing for easy opening and closing.

Seals

EPDM Sealing rubber is applied to the top, bottom, and periphery, providing resistance to cold temperatures and preventing breakage.

Make the glass sectional garage door more heat insulation and wind resistance.

Manual Device ( Smaller size only)

In cases where the glass panel garage door is of a smaller size, you have the option to either manually open the door or use a combination of electric and manual operation.

In the event of a power outage, the motorized glass sectional garage doors can also be manually opened using a chain.

Bottom Wireless Safety Airbag

When the glass overhead garage door encounters an obstacle, the integrated air bag system detects the obstruction and immediately halts the door's operation. This advanced safety feature ensures that any potential collisions are prevented, thereby protecting both people and property from harm. It is important to note that this function is non-standard and may require additional customization. Customers should consider including this feature based on their specific safety needs and operational requirements.

Features

Beautiful appearance

Glass sectional garage doors are highly preferred by commercial establishments and vacation villas for their beautiful and stylish designs. The superb craftsmanship of these garage doors enhances the overall appearance of the building, enabling the store to attract more customers and enhancing the visual enjoyment of the villa occupants.

Transparency

The best feature of a glass panel overhead garage door is its light transmission. Transparent door panels allow one to see the scene on the other side of the door. When at the cottage, people can enjoy the view outside with the door closed inside. Especially on rainy days, it prevents rainwater from entering the room and allows one to enjoy the rainy view. When used in commercial stores, this kind of door serves to protect the products inside the store, but also allows pedestrians passing by outside to see the products and attract customers to enter the store. We hope that such practical features can make you interested in our products.
