Vertical Bifold Garage Door

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

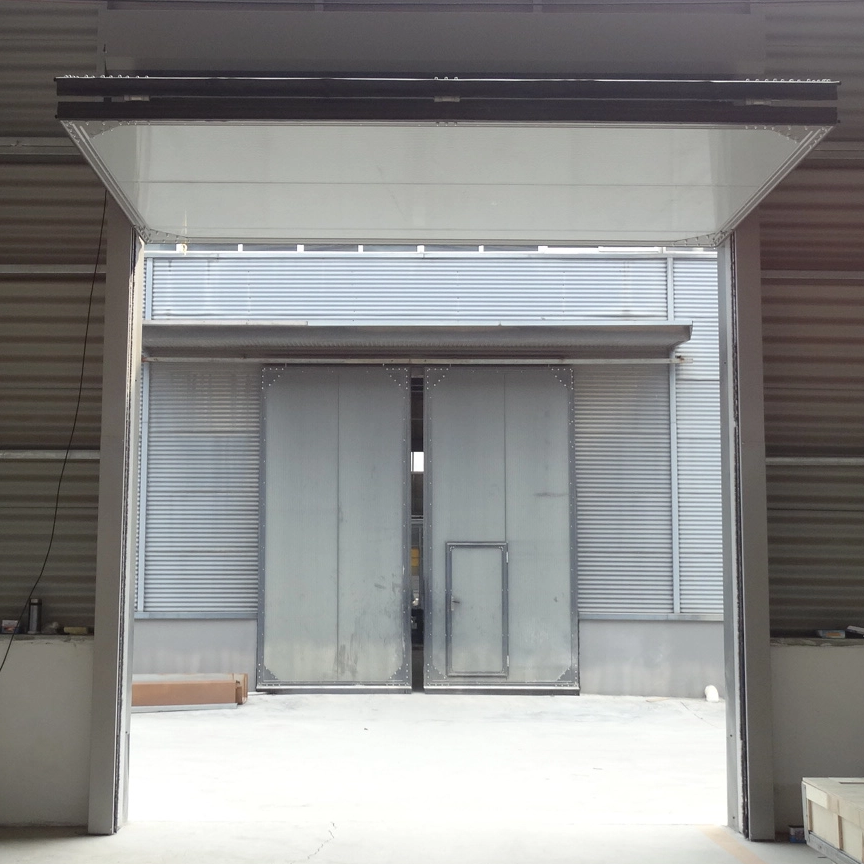

Vertical bifold garage door is a type of garage door that opens by folding upwards in a vertical direction. This design distinguishes itself from conventional garage doors, which either swing horizontally outward or roll up overhead. The vertical double folding mechanism entails the door panel folding along a vertical axis, enabling a distinctive and space-efficient operation.
Color:
Availability:

Technical Data

Material
Galvanized steel with PU foaming inside
Material Construction
Steel-foam-Steel
sandwich panel
Thickness of the steel plate
0.4mm
Section Style
Finger protection panel

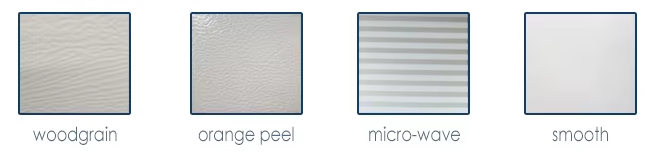

Section Surface Finish
orange peel
flush
Front-side design
with Rectangle
stripes design
Backside design
<= 0.033W/M.K
Accessories
Single Track with min headroom for 350mm;
Double Track with min headroom for 150mm
Door motor
AC220V or 110V; DC Motor; 800-1500N
Opening direction
Fold inward or outward
Color
White and other colors can be customized

Product Description

Application

The vertical bifold garage doors are renowned for their distinctive opening mechanism and space-efficient characteristics. The material used in the vertical double-fold garage door is identical to that of a standard garage door, with the electric motor facilitating its seamless operation. This unique folding design proves ideal for structures with limited overhead clearance or situations where preserving headspace is paramount.

Features

1.Bifold structure:

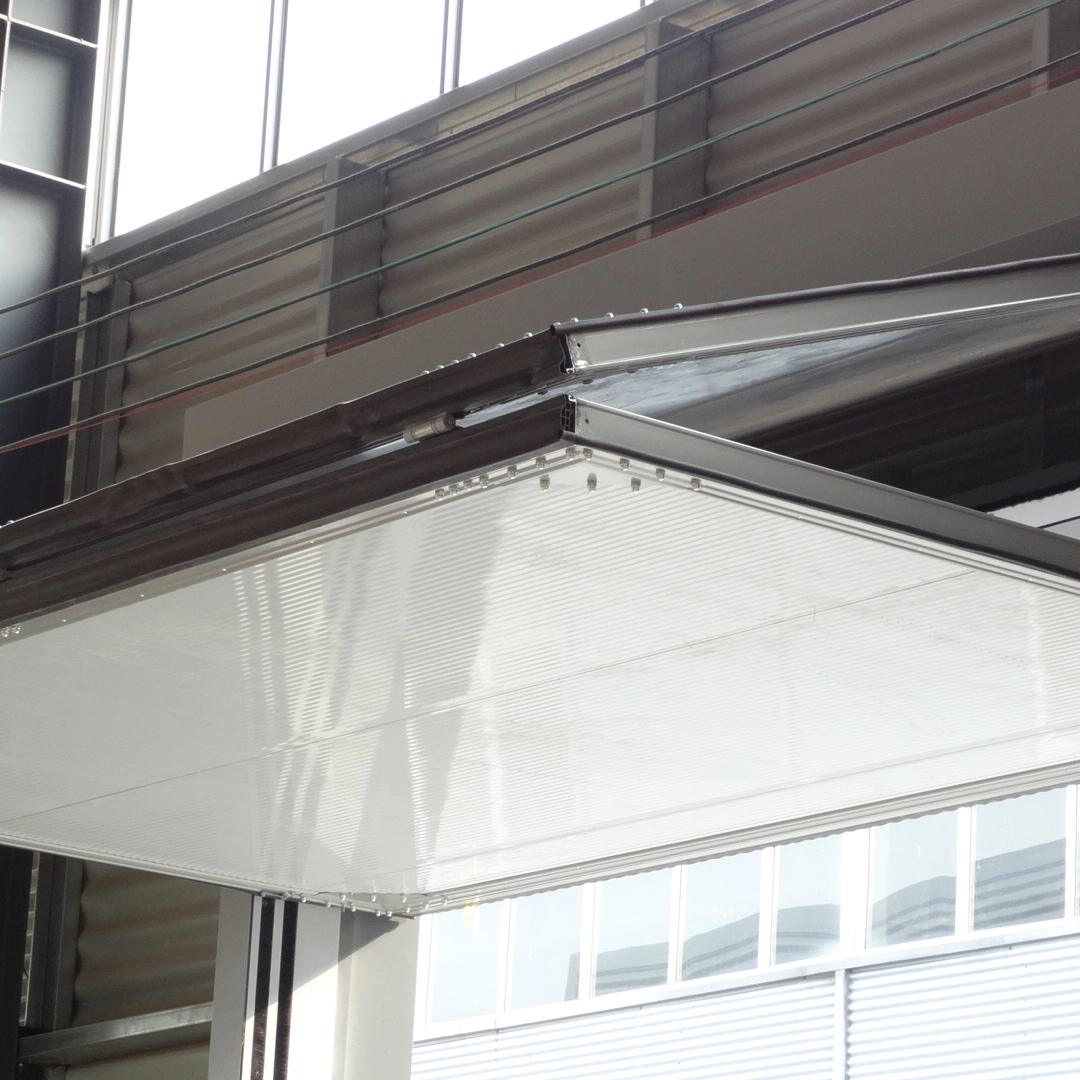

The two panels of the vertical bifold garage door are hinged in the middle, and when started, its bottom folds upward along a set of vertical tracks. This design allows the door to open without exceeding the height of the garage opening, making it suitable for Spaces with limited ceiling clearance.

2.Materials:

The vertical bifold garage doors are the same as the sectional garage doors, using sandwich panels made of galvanized steel and PU foam. Strong, durable and lightweight.

3.Versatility:

Vertical bifold garage doors are versatile and can be used in a variety of applications, including residential and commercial environments. They are suitable for garages, workshops, warehouses and other spaces that require vertical openings.

4.Remote Operation:

Like other garage doors, vertical bifold garage doors can be remotely controlled by remote control, and other door opening methods such as infrared induction and radar detection can also be increased according to demand.

5.Thermal insulation:

The sandwich panel used in the vertical bifold garage door can isolate heat well, adjust the temperature in the garage, reduce heat loss, and greatly improve the energy efficiency.


bifold garage door panel

vertical bifold garage doorbifold garage door
