Transparent Roll Up Door

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

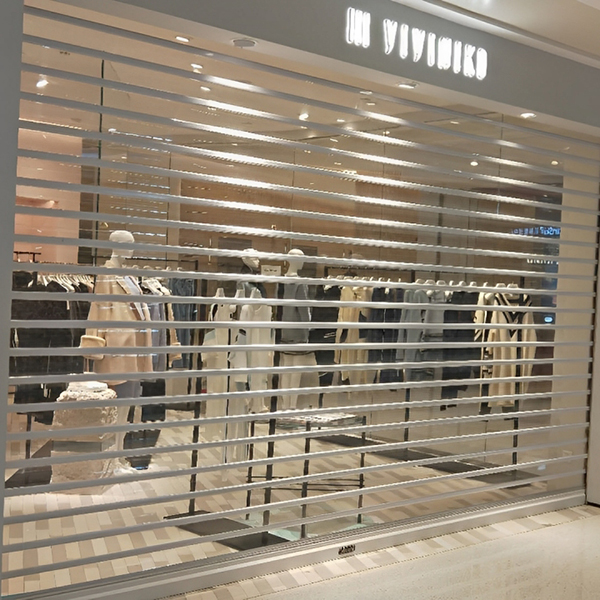

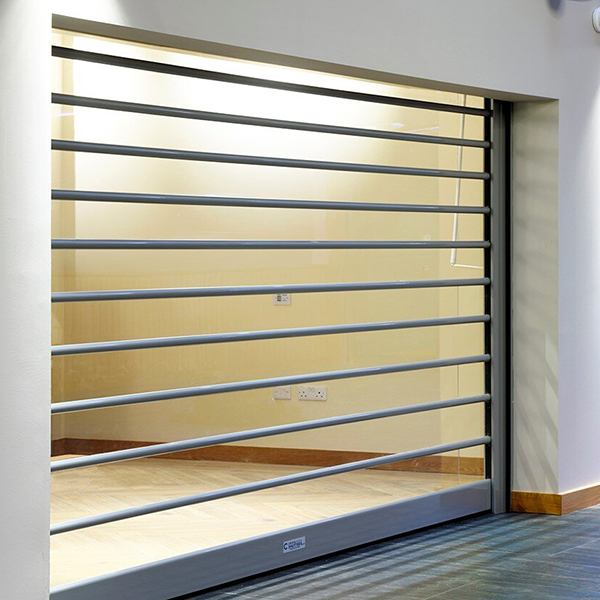

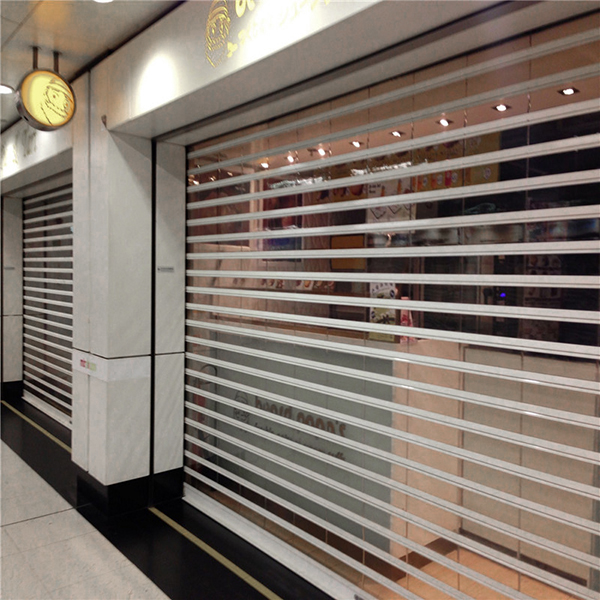

The aluminum transparent roll up door, also known as a clear or glass roll up door, is widely used in commercial and industrial settings. Constructed with transparent polycarbonate panels, this door provides both security and visibility, allowing a clear view in and out of the area. The combination of durability and transparency makes it a popular choice for spaces requiring protection without sacrificing visual access.

  • Starting from $349 USD per set

Color:
Operate method:
Hood Cover box:
Availability:
Max dimension
width * height 6000mm*6000mm
Material
Aluminum Alloy and Polycarbonate
Power supply
220±10%V/380±10%V
50/60Hz
Opening and closing speed
5-15m/min
Wind resistance
28-35m/s (Class 10-12)
Sound insulation level
50DB
Installation method
Middle
Exterior
Interior
R Value
>= 12.05m2.K/W

Motor

Chinese top brand '' Anlin'', tubular motor.Can be opened manually when power failure.


Button and Remote controller

The wall-mounted switch button provides easy access for opening and closing the door, allowing for quick operation. Additionally, a remote control is available for convenient, wireless control of the door from a distance.

Safety device

The closure detector ensures that the door is fully closed, providing added security and preventing unauthorized access. The photocell sensor enhances safety by detecting obstacles in the door's path, automatically stopping the door's movement to avoid accidents.

Slats

The door body is constructed using a combination of a 1mm thick polycarbonate (PC) board and an aluminum alloy wind-resistant bar. The PC board provides durability and transparency, while the aluminum alloy wind-resistant bar enhances the structural integrity and resistance to high winds.

Rails with seal

Rails with seals provide structural support and enhance insulation by ensuring a tight closure between the door and frame. This feature prevents drafts, dust, and moisture, improving energy efficiency and maintaining a stable environment.

Hood cover box

The hood cover box protects the motor and roller, prolonging the life of the roll up door. It is made of 1mm powder coated thick galvanized steel that can be painted in different colors.


1. Transparent Panels:

Aluminum alloy transparent roll up doors are constructed using clear or transparent polycarbonate panels, allowing natural light to permeate the space and enabling visibility both inside and outside the area.


2. Enhanced Security:

Despite their transparent composition, aluminum glass roll up doors offer a heightened level of security. The impact-resistant polycarbonate material poses a challenge for potential intruders, making it arduous for them to breach. In certain models, reinforced or multi-wall panels are incorporated to further bolster security measures.


3. Unyielding Durability:

Polycarbonate panels are renowned for their durability and ability to withstand various environmental elements, such as UV rays, extreme temperatures, and moisture. This exceptional durability ensures a prolonged lifespan for the doors.


4. Insulation Benefits:

Certain models are equipped with insulated polycarbonate panels, offering thermal insulation advantages. This facilitates temperature control, reduces energy costs, and fosters a comfortable working environment.


5. Unobstructed Visibility:

These doors offer an unimpeded view of the interior, making them ideal for businesses aiming to showcase their products or maintain visibility for security and surveillance purposes.
