Sliding Hangar Door

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

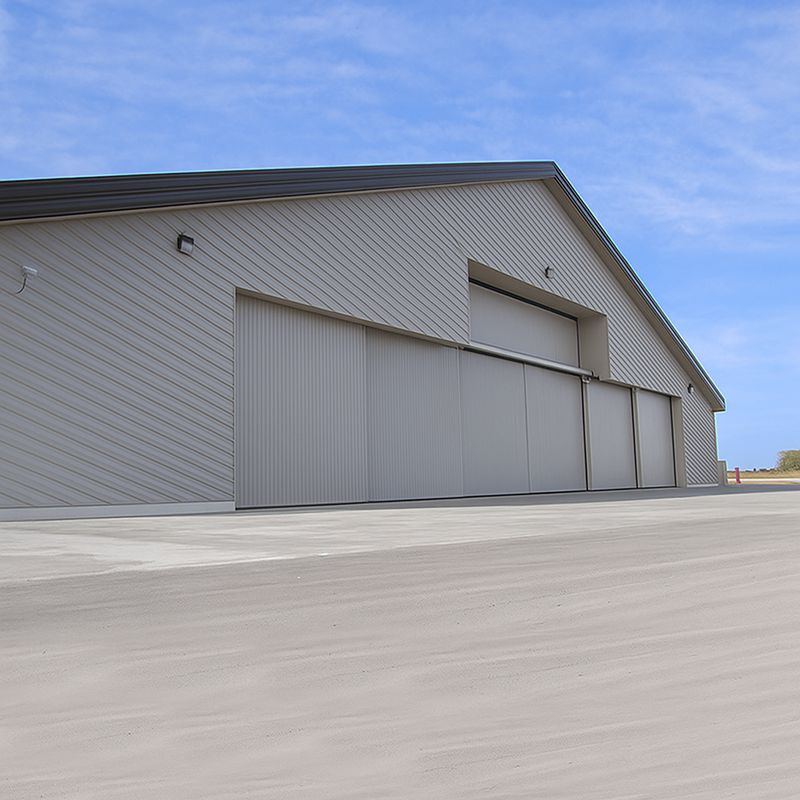

Sliding hangar door is a large and robust type of door commonly used in aviation and industrial settings, particularly in aircraft hangars and warehouses. These doors are designed to provide a wide and unobstructed opening for the entry and exit of aircraft, vehicles, or large equipment.

Availability:

Technical Data

Buy Sliding Hangar Door directly with low price an
0.75-1.5KW
380±10%V
50HZ
Moving speed
Highest speed: 20m/min
Lowest speed: 6m/min
Speed by manual: 3m/min
Control system
Master control + sub control (PLC program)
Sound insulation
15-23DB
Heat transfer coefficient
1.623W/ m2℃
Work temperature
-40℃~50℃
Basic wind pressure
0.65kN/m2(wind speed 30m/S)
Deflection of extreme wind pressure
1/365(<1/300)
Seismic intensity
Class 7
Wind resist
0.55KN/ ㎡-0.85KN/㎡

Product Description

hangar door

Product Details

Door panel

Each of the three door panels has its own advantages and disadvantages, so you can choose according to your needs.

Steel Structure

Professional mechanical analysis of steel structure.All material are hot galvanized, with excellent corrosion resistance.All jolts are fully welded or bolted with high strength.

Guide Rails

The guide rail of a sliding hangar door is a crucial component designed to ensure smooth and reliable operation. Made from robust materials like galvanized steel or aluminum, the guide rail provides a stable track for the door to slide along. Its precision-engineered design reduces friction and wear, enhancing the door's longevity and performance.

Wheels

Bottom bearing rail: conical design, wheels will be adjusted position automatically.

Top guide rail: special cylindrical design, the wheels could be moved up and down to adapt the possible deformation of the door.

Motor and Controllers

Siemens brand motor with clutch.Variable frequency drive system to realize slow start and stop.

Other Accessories

Limit Switch

Features

1. Horizontal Sliding Mechanism:

Airplane sliding hangar doors operate horizontally on a track system, allowing for a wide and unobstructed opening. These doors glide smoothly along the guide rails, providing easy access for large aircraft and equipment. The design ensures maximum utilization of space, as the doors do not require any additional room to swing open. This efficient mechanism makes sliding hangar doors ideal for aviation facilities, warehouses, and industrial settings where wide openings and reliable operation are essential.


2.Customized Sizes:

Sliding hangar doors come in various sizes and can be custom-built to fit specific hangar or warehouse dimensions. This customization ensures that the doors meet the unique requirements of each facility, providing a tailored solution for any space. Whether for accommodating small aircraft or large industrial equipment, these doors offer the flexibility and adaptability needed to optimize functionality and efficiency in diverse environments.


3.Robust Construction:

Hangar doors are commonly made from robust materials like steel, aluminum, or a blend of materials, guaranteeing their resilience in industrial and aviation settings.


4.Large Clear Opening:

Airplane sliding hangar doors create a large, clear opening, which is crucial for accommodating aircraft with varying wingspans and other oversized equipment. This expansive entryway ensures smooth and safe movement, minimizing the risk of damage during operations. By providing ample space, these doors enhance operational efficiency and flexibility, making them an ideal choice for hangars and facilities handling large-scale machinery and aircraft.


5.Insulation Options:

Some sliding hangar doors come with insulation features to help maintain temperature control within the hangar, protecting aircraft and equipment.


6.Reliable Operation:

Aircraft sliding hangar doors are designed for reliable and smooth operation, often with safety mechanisms to prevent accidents and obstructions during opening and closing.


7.Security:

Sliding hangar doors provide an added layer of security to protect valuable assets stored within hangars or warehouses. Their robust construction and reliable locking mechanisms ensure that aircraft and other valuable equipment are safeguarded against unauthorized access and potential threats.


8.Weather Resistance:

Carefully crafted sliding hangar doors are built to resist harsh weather conditions, making them suitable for both indoor and outdoor use. With their durable construction and weather-resistant materials, these doors can withstand extreme temperatures, heavy rainfall, and powerful winds, ensuring dependable asset protection in a variety of environmental conditions.


9.Aircraft Safety:

The design of aircraft sliding hangar doors is tailored to comply with rigorous aviation safety requirements, safeguarding both aircraft and personnel during operational activities. With their durable structure and dependable mechanisms, these doors play a crucial role in accident prevention, establishing a secure and effective space for aviation endeavors.
